A new report from the European Southern Observatory (ESO):

ALMA Uncovers Secrets of Giant Space Blob

An international team using ALMA, along with ESO’s Very Large Telescope and other telescopes, has discovered the true nature of a rare object in the distant Universe called a Lyman-alpha Blob. Up to now astronomers did not understand what made these huge clouds of gas shine so brightly, but ALMA has now seen two galaxies at the heart of one of these objects and they are undergoing a frenzy of star formation that is lighting up their surroundings. These large galaxies are in turn at the centre of a swarm of smaller ones in what appears to be an early phase in the formation of a massive cluster of galaxies. The two ALMA sources are expected to evolve into a single giant elliptical galaxy.

This rendering shows a snapshot from a cosmological simulation of a Lyman-alpha Blob similar to LAB-1. This simulation tracks the evolution of gas and dark matter using one of the latest models for galaxy formation running on the NASA Pleiades supercomputer. This view shows the distribution of gas within the dark matter halo, colour coded so that cold gas (mainly neutral hydrogen) appears red and hot gas appears white. Embedded at the centre of this system are two strongly star-forming galaxies, but these are surrounded by hot gas and many smaller satellite galaxies that appear as small red clumps of gas here. Lyman-alpha photons escape from the central galaxies and scatter off the cold gas associated with these satellites to give rise to an extended Lyman-alpha Blob.

This rendering [see larger images] shows a snapshot from a cosmological simulation of a Lyman-alpha Blob similar to LAB-1. This simulation tracks the evolution of gas and dark matter using one of the latest models for galaxy formation running on the NASA Pleiades supercomputer. This view shows the distribution of gas within the dark matter halo, colour coded so that cold gas (mainly neutral hydrogen) appears red and hot gas appears white. Embedded at the centre of this system are two strongly star-forming galaxies, but these are surrounded by hot gas and many smaller satellite galaxies that appear as small red clumps of gas here. Lyman-alpha photons escape from the central galaxies and scatter off the cold gas associated with these satellites to give rise to an extended Lyman-alpha Blob.

Lyman-alpha Blobs (LABs) are gigantic clouds of hydrogen gas that can span hundreds of thousands of light-years and are found at very large cosmic distances. The name reflects the characteristic wavelength of ultraviolet light that they emit, known as Lyman-alpha radiation [1]. Since their discovery, the processes that give rise to LABs have been an astronomical puzzle. But new observations with ALMA may now have now cleared up the mystery.

One of the largest Lyman-alpha Blobs known, and the most thoroughly studied, is SSA22-Lyman-alpha blob 1, or LAB-1. Embedded in the core of a huge cluster of galaxies in the early stages of formation, it was the very first such object to be discovered — in 2000 — and is located so far away that its light has taken about 11.5 billion years to reach us.

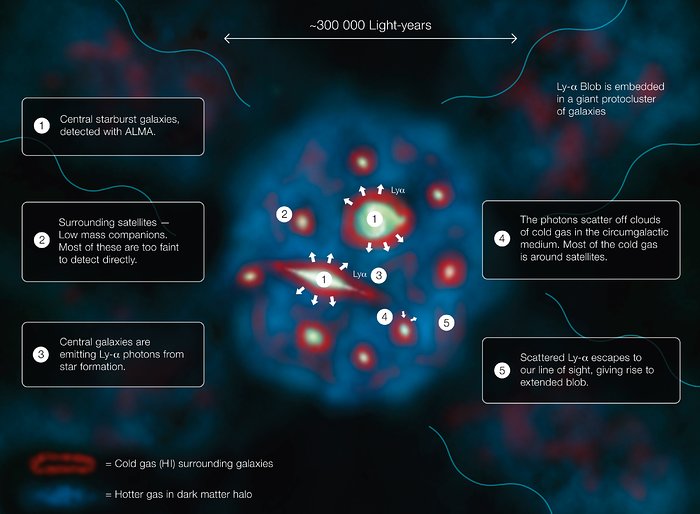

This diagram explains how a Lyman-alpha Blob, one of the largest and brightest objects in the Universe, shines.

This diagram explains how a Lyman-alpha Blob, one of the largest and brightest objects in the Universe, shines. [Larger version.]

A team of astronomers, led by Jim Geach, from the Centre for Astrophysics Research of the University of Hertfordshire, UK, has now used the Atacama Large Millimeter/Submillimeter Array’s (ALMA) unparallelled ability to observe light from cool dust clouds in distant galaxies to peer deeply into LAB-1. This allowed them to pinpoint and resolve several sources of submillimetre emission [2].

They then combined the ALMA images with observations from the Multi Unit Spectroscopic Explorer (MUSE) instrument mounted on ESO’s Very Large Telescope (VLT), which map the Lyman-alpha light. This showed that the ALMA sources are located in the very heart of the Lyman-alpha Blob, where they are forming stars at a rate over 100 times that of the Milky Way.

This video zoom sequence starts with a wide-field view of the dim constellation of Aquarius (The Water Carrier) and slowly closes in on one of the largest known single objects in the Universe, the Lyman-alpha blob LAB1. Observations with the ESO VLT show, for the first time, that the giant “blob” must be powered by galaxies embedded within the cloud. Credit: ESO/A. Fujii/Digitized Sky Survey 2/M. Hayes. Music: John Dyson (from the album Moonwind)

Deep imaging with the NASA/ESA Hubble Space Telescope and spectroscopy at the W. M. Keck Observatory [3] showed in addition that the ALMA sources are surrounded by numerous faint companion galaxies that could be bombarding the central ALMA sources with material, helping to drive their high star formation rates.

This  image shows one of the largest known single objects in the Universe,  the Lyman-alpha blob LAB-1. This picture is a composite of two different images taken with the FORS instrument on the Very Large Telescope (VLT)  — a wider image showing the surrounding galaxies and a much deeper observation of the blob itself  at the centre made to detect its polarisation. The intense Lyman-alpha ultraviolet radiation from the blob appears green after it has been stretched by the  expansion of the Universe during its long journey to Earth. These new observations show for the first  time that the light from this object is polarised. This means that the  giant "blob" must be powered by galaxies embedded within the cloud.

This image shows one of the largest known single objects in the Universe, the Lyman-alpha blob LAB-1. This picture is a composite of two different images taken with the FORS instrument on the Very Large Telescope (VLT)  — a wider image showing the surrounding galaxies and a much deeper observation of the blob itself at the centre made to detect its polarisation. The intense Lyman-alpha ultraviolet radiation from the blob appears green after it has been stretched by the expansion of the Universe during its long journey to Earth. These new observations show for the first time that the light from this object is polarised. This means that the giant “blob” must be powered by galaxies embedded within the cloud. [Larger versions.]

The team then turned to a sophisticated simulation of galaxy formation to demonstrate that the giant glowing cloud of Lyman-alpha emission can be explained if ultraviolet light produced by star formation in the ALMA sources scatters off the surrounding hydrogen gas. This would give rise to the Lyman-alpha Blob we see.

Jim Geach, lead author of the new study, explains:

Think of a streetlight on a foggy night — you see the diffuse glow because light is scattering off the tiny water droplets. A similar thing is happening here, except the streetlight is an intensely star-forming galaxy and the fog is a huge cloud of intergalactic gas. The galaxies are illuminating their surroundings.”

Understanding how galaxies form and evolve is a massive challenge. Astronomers think Lyman-alpha Blobs are important because they seem to be the places where the most massive galaxies in the Universe form. In particular, the extended Lyman-alpha glow provides information on what is happening in the primordial gas clouds surrounding young galaxies, a region that is very difficult to study, but critical to understand.

Jim Geach concludes,

What’s exciting about these blobs is that we are getting a rare glimpse of what’s happening around these young, growing galaxies. For a long time the origin of the extended Lyman-alpha light has been controversial. But with the combination of new observations and cutting-edge simulations, we think we have solved a 15-year-old mystery: Lyman-alpha Blob-1 is the site of formation of a massive elliptical galaxy that will one day be the heart of a giant cluster. We are seeing a snapshot of the assembly of that galaxy 11.5 billion years ago.”

This  visible-light wide-field image of the region around the giant  Lyman-alpha blob LAB1 was created from photographs taken through blue  and red filters and forming part of the Digitized Sky Survey 2. The blob  itself lies at the centre of the image but, despite being huge and very  luminous, it is so distant that it is too faint to be seen clearly on  this picture. The field of view is approximately 2.9 degrees across.

This visible-light wide-field image of the region around the giant Lyman-alpha blob LAB1 was created from photographs taken through blue and red filters and forming part of the Digitized Sky Survey 2. The blob itself lies at the centre of the image but, despite being huge and very luminous, it is so distant that it is too faint to be seen clearly on this picture. The field of view is approximately 2.9 degrees across. [Larger versions.]

Notes

[1] The negatively charged electrons that orbit the positively charged nucleus in an atom have quantised energy levels. That is, they can only exist in specific energy states, and they can only transition between them by gaining or losing precise amounts of energy. Lyman-alpha radiation is produced when electrons in hydrogen atoms drop from the second-lowest to the lowest energy level. The precise amount of energy lost is released as light with a particular wavelength, in the ultraviolet part of the spectrum, which astronomers can detect with space telescopes or on Earth in the case of redshifted objects. For LAB-1, at redshift of z~3, the Lyman-alpha light is seen as visible light.

[2] Resolution is the ability to see that objects are separated. At low resolution, several bright sources at a distance would seem like a single glowing spot, and only at closer quarters would each source be distinguishable. ALMA’s high resolution has resolved what previously appeared to be a single blob into two separate sources.

[3] The instruments used were the Space Telescope Imaging Spectograph (STIS) on the NASA/ESA Hubble Space Telescope and the Multi-Object Spectrometer For Infra-Red Exploration (MOSFIRE) mounted on the Keck 1 telescope on Hawaii.
